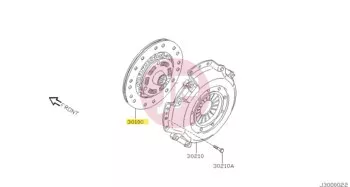

NISSAN 30100-VB008 Clutch Disc

The NISSAN (SKU: 30100-VB008) clutch disc is one of the most essential wear components of the vehicle's drivetrain system. Its primary role is to transmit the engine's torque to the transmission efficiently and without slipping, as well as to seamlessly disconnect and re-engage the connection between the engine and the gearbox during gear changes.

Technical Features and Construction

This premium quality clutch disc is manufactured according to strict factory OEM specifications, ensuring durability and dependable operation even under demanding driving conditions. Key design characteristics include:

• Friction Facings: Made from highly heat-resistant, organic-based friction material with an optimized friction coefficient, delivering maximum grip with minimal wear.
• Torsional Vibration Damping: Heavy-duty coil springs (torsion dampers) integrated into the hub assembly effectively absorb vibrations and sudden torque shocks from the engine, protecting the gearbox and the rest of the drivetrain from premature wear.
• Precision Splined Hub Profile: The splined connection hub is machined to micrometer accuracy, facilitating smooth axial movement along the transmission input shaft without binding or excessive free play.

Function and Operation

The clutch disc is positioned between the flywheel and the clutch pressure plate. When the clutch pedal is released, the pressure plate firmly clamps the disc against the flywheel, directly transmitting crankshaft rotation to the transmission input shaft. Depressing the clutch pedal releases the clamping force, disengaging the disc and allowing smooth, effortless gear shifting.

Typical Signs of Wear and Failure

Because the clutch disc is subjected to continuous friction, it wears down naturally over time. Common symptoms of failure or advanced wear include:

• Clutch Slippage: Engine RPM rises under acceleration without a proportional increase in vehicle speed, indicating severe friction lining wear or oil contamination.
• Difficult Gear Shifting: If the clutch fails to disengage completely (due to warped disc surfaces or a binding hub spline), engaging gears becomes difficult or noisy.
• Clutch Judder / Chattering: Uneven shuddering or grabbing when releasing the pedal to set the vehicle in motion may point to uneven lining wear or fatigued torsion springs.
• Abnormal Noises: Metallic grinding, rubbing, or rattling sounds coming from the bellhousing, especially when operating the clutch pedal.

For safe and trouble-free performance, it is recommended to replace the entire clutch kit (pressure plate and release bearing)—and, if necessary, the dual-mass flywheel—simultaneously when replacing the clutch disc.
