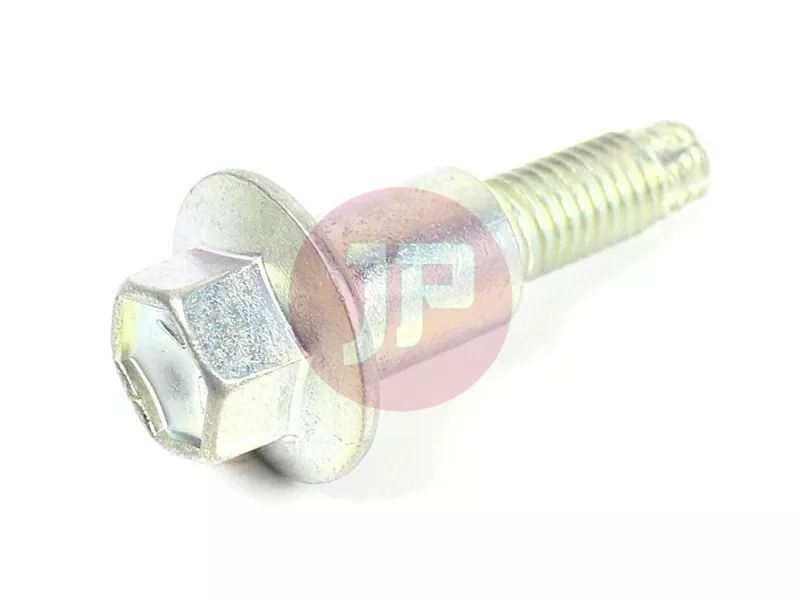

TOYOTA 90109-08244 Brake Cable Connecting Bolt
Genuine part. Fitment information is for reference only. To ensure 100% compatibility, please send us a message with your VIN number before ordering.
Categories
OEM / Alternate Numbers
Product Description
The TOYOTA 90109-08244 part is a genuine-quality, high-strength hexagon fastening bolt (brake cable connecting bolt). This fastener plays a critical role in the precise, displacement-free securing of brake system mechanical components, particularly the parking brake cable guide and connecting elements. Meeting strict factory standards, the steel alloy and corrosion-resistant surface treatment ensure torque retention and vibration resistance even under dynamic driving conditions.
Technical Characteristics and Vehicle Function
Bolted joints on the vehicle chassis and brake system are exposed to severe conditions, including moisture, road salt, vibrations, and temperature fluctuations. A worn, corroded, or thread-damaged bolt can lead to cable looseness, unreliable parking brake operation, or rattling noises. During maintenance, using an undamaged genuine bolt tightened to the correct torque specification is essential for the reliable operation of the mechanism.
- Part Number (SKU): 90109-08244
- Manufacturer: TOYOTA
- Design: Hexagon head bolt (BOLT, HEXAGON)
- Application: Fastening and connecting bolt (brake cable / mechanical sub-assemblies)
- Superseded / Alternative Reference Numbers: 90109A0007
Vehicle Compatibility
Based on the manufacturer database, this part is compatible with the following models:
- Toyota Auris (E150) [2006 - ...]
- Toyota Corolla (E120) [2001 - ...]
- Toyota Corolla (E140) [2006 - ...]
- Toyota Corolla Rumion (E150) [2007 - ...]
- Toyota Crown (S200) [2010 - ...]
- Toyota Dyna / Toyoace (U300/U400/Y200) [2001 - ...]
- Toyota Fortuner (GGN155) [2015 - ...]
- Toyota Hiace S.B.V. / Granvia (XH10/XH20) [1995 - 2001]
- Toyota Hilux (N10/N20/N30) [2015 - ...]
- Toyota Ist (NCP11) [2007 - ...]
- Toyota Lexus IS (XE10) [2000 - ...]
- Toyota Lexus RX (AL10) [2010 - ...]
- Toyota Premio/Allion (NZT260) [2007 - ...]
- Toyota Quick Deli/Urban Sup (BU28) [2004 - 2006]
- Toyota Ractis (NCP10) [2005 - ...]
- Toyota Rukus (AZE151) [2010 - ...]
- Toyota Scion Im/Im (ZRE186) [2015 - ...]
- Toyota Tacoma (GRN2) [2015 - ...]
- Toyota Yaris (XP90) [2005 - ...]
Technical Specifications
| Brand | TOYOTA |
|---|---|
| Weight | 0.040 kg |
Compatible Vehicles
| Make | Model | Engine | Year | Notes |
|---|---|---|---|---|
| Toyota | Auris (E150) | All Engines | 2006 - ... | BOLT, HEXAGON |
| Toyota | Corolla (E120) | All Engines | 2001 - ... | BOLT, HEXAGON |
| Toyota | Corolla (E140) | All Engines | 2006 - ... | BOLT, HEXAGON |
| Toyota | Corolla Rumion (E150) | All Engines | 2007 - ... | BOLT, HEXAGON |
| Toyota | Crown (S200) | All Engines | 2010 - ... | BOLT, HEXAGON |
| Toyota | Dyna / Toyoace (U300/U400/Y200) | All Engines | 2001 - ... | BOLT, HEXAGON |
| Toyota | Fortuner (GGN155) | All Engines | 2015 - ... | BOLT, HEXAGON |
| Toyota | Hiace S.B.V. / Granvia (XH10/XH20) | All Engines | 1995 - 2001 | BOLT, HEXAGON |
| Toyota | Hilux (N10/N20/N30) | All Engines | 2015 - ... | BOLT, HEXAGON |
| Toyota | Ist (NCP11) | All Engines | 2007 - ... | BOLT, HEXAGON |
| Toyota | Lexus IS (XE10) | All Engines | 2000 - ... | BOLT, HEXAGON |
| Toyota | Lexus RX (AL10) | All Engines | 2010 - ... | BOLT, HEXAGON |
| Toyota | Premio/Allion (NZT260) | All Engines | 2007 - ... | BOLT, HEXAGON |
| Toyota | Quick Deli/Urban Sup (BU28) | All Engines | 2004 - 2006 | BOLT, HEXAGON |
| Toyota | Ractis (NCP10) | All Engines | 2005 - ... | BOLT, HEXAGON |
| Toyota | Rukus (AZE151) | All Engines | 2010 - ... | BOLT, HEXAGON |
| Toyota | Scion Im/Im (ZRE186) | All Engines | 2015 - ... | BOLT, HEXAGON |
| Toyota | Tacoma (GRN2) | All Engines | 2015 - ... | BOLT, HEXAGON |
| Toyota | Yaris (XP90) | All Engines | 2005 - ... | BOLT, HEXAGON |
Inquire About This Part
Not sure if this fits? Send us your VIN number and we will double check for you.
