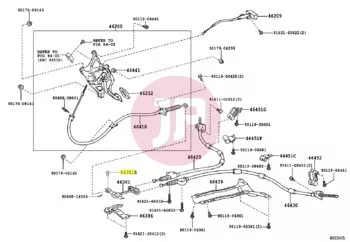

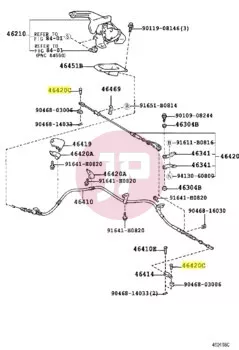

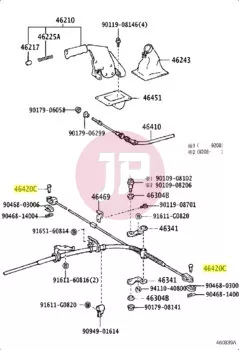

TOYOTA 90240-08059 Parking Brake Cable Pin with Hole

The TOYOTA 90240-08059 component is a genuine OEM parking brake cable retaining pin (clevis pin with hole), serving as a crucial element in the mechanical parking brake system. The pin's function is to securely fasten the end of the parking brake cable while allowing necessary articulation to the operating lever, brake caliper, or drum brake linkage. The integrated retaining hole enables securing with a cotter pin or other mechanical locking fastener, preventing pin displacement and disengagement of the handbrake cable during vehicle operation or parking.

Technical Specifications

• Manufacturer: TOYOTA (Genuine OEM part)
• Part Number (SKU): 90240-08059
• Reference / Alternative Part Number: 90240T0001
• Part Type: Parking brake cable retaining pin with hole (PIN, W/HOLE)
• Application: Parking brake / emergency brake mechanism and cable linkage
• Material: High-strength steel with corrosion-resistant surface coating

Function and Symptoms of Wear

Every time the mechanical parking brake is applied, the retaining pin is subjected to considerable shear and tensile forces. Ongoing exposure to environmental factors (moisture, road salt, dirt) can lead to surface corrosion, hole elongation, or pin seizing. A worn or corroded pin may result in increased free play in the handbrake lever, stiffness or binding in the mechanism, and in extreme cases, complete failure of the parking brake or cable disconnection. Checking and, if necessary, replacing the retaining pins is recommended during brake system maintenance or parking brake cable replacement.

Compatible Vehicles

• Toyota 4Runner (N180) 3.0 D-4D [1995 - 9999]
• Toyota 4Runner (N180) 3.0 TD [1995 - 9999]
• Toyota 4Runner (N180) 2.7 [1995 - 9999]
• Toyota 4Runner (N210) 2.4 [1988 - 1995]
• Toyota 4Runner (N60) 2.4 [1988 - 1989]
• Toyota Aristo (JZS147) 4.0 [1992 - 1997]
• Toyota Aristo (JZS16) [1997 - 9999]
• Toyota Auris (E150) [2006 - ...]
• Toyota Avensis (T270) 2.0 D-4D [2008 - 2015]
• Toyota Avensis (T270) 2.0 [2008 - 2011]
• Toyota Avensis (T270) 1.6 D [2015 - 9999]
• Toyota Avensis (T270) 1.6 [2011 - ...]
• Toyota C-HR (AX10/AX50) [2019 - ...]
• Toyota Celsior (UCF1) 4.0 [1989 - 1994]
• Toyota Celsior (UCF2) 4.0 [1994 - 9999]
• Toyota Celsior (UCF3) 4.3 [2000 - ...]
• Toyota Century (GZG50) [1997 - ...]
• Toyota Century (VG4) [1987 - 1997]
• Toyota Corolla (E120) [2001 - ...]
• Toyota Corolla (E140) [2010 - ...]
• Toyota Corolla (E180) [2016 - ...]
• Toyota Corolla Verso (E120/E130) [2004 - ...]
• Toyota Crown (S130) 2.0 [1995 - 9999]
• Toyota Crown (S130) 4.0 [1987 - 1991]
• Toyota Crown (S140) 4.0 [1991 - 1992]
• Toyota Crown (S150) 4.0 [1995 - 9999]
• Toyota Crown (S170) 4.0 [1999 - 2004]
• Toyota Crown (S180) 3.5 [2003 - ...]
• Toyota Crown (S180) 4.3 [2004 - ...]
• Toyota Crown (S200) 3.5 [2008 - ...]
• Toyota Dyna / Toyoace (U300/U400/Y200) [2006 - ...]
• Toyota Fortuner (GGN155) [2015 - ...]
• Toyota Hiace S.B.V. / Granvia (XH10/XH20) [1995 - 1998]
• Toyota Highlander (ASU50) [2016 - ...]
• Toyota Highlander/Kluger (ASU50) [2016 - ...]
• Toyota Hilux (N10/N20/N30) [2015 - ...]
• Toyota Hilux (N50/N60) 2.4 TD [1988 - 1989]
• Toyota Hilux (N80-N110) 3.0 TD [2001 - 9999]
• Toyota Hilux (N80-N110) 2.4 [1989 - 1993]
• Toyota Hilux (N80-N110) 2.4 TD [1988 - ...]
• Toyota Land Cruiser 100 (J100) 4.5 [1998 - 2002]
• Toyota Land Cruiser 100 (J100) 4.2 TD [1998 - ...]
• Toyota Land Cruiser 100 (J100) 4.7 [1998 - ...]
• Toyota Land Cruiser 70 (J70) 4.5 [1997 - 2004]
• Toyota Land Cruiser 70 (J70) 4.0 [2007 - 2016]
• Toyota Land Cruiser 70 (J70) 4.2 D [1997 - ...]
• Toyota Land Cruiser 80 (J80) 4.5 [1997 - ...]
• Toyota Land Cruiser Prado (J90) 3.0 D-4D [1999 - 2002]
• Toyota Land Cruiser Prado (J90) 3.0 TD [1996 - ...]
• Toyota Land Cruiser Prado (J90) 2.7 [1996 - 2002]
• Toyota Lexus GS (S140) [1993 - 1997]
• Toyota Lexus GS (S160) 4.0 [1997 - 9999]
• Toyota Lexus IS (XE10) [2000 - ...]
• Toyota Lexus LS (XF10) 4.0 [1989 - 1994]
• Toyota Lexus LS (XF20) 4.0 [1994 - 9999]
• Toyota Lexus LS (XF30) 4.3 [2000 - ...]
• Toyota Lexus LX (J100) 4.7 [1998 - ...]
• Toyota Lexus LX (J80) 4.5 [1997 - 1998]
• Toyota Lexus SC (Z40) 4.3 [2001 - ...]
• Toyota Majesta (URS206) 4.3 [2009 - 9999]
• Toyota Sequoia (UCK35) [2000 - ...]
• Toyota T100 (RCK10) [1992 - 9999]
• Toyota Tacoma (GRN2) [2015 - ...]
• Toyota Tacoma (RZN140) 2.7 [1998 - ...]
• Toyota Tacoma (RZN161) 2.7 [1995 - ...]
• Toyota Tundra (GSK30) [1999 - ...]
